Overview

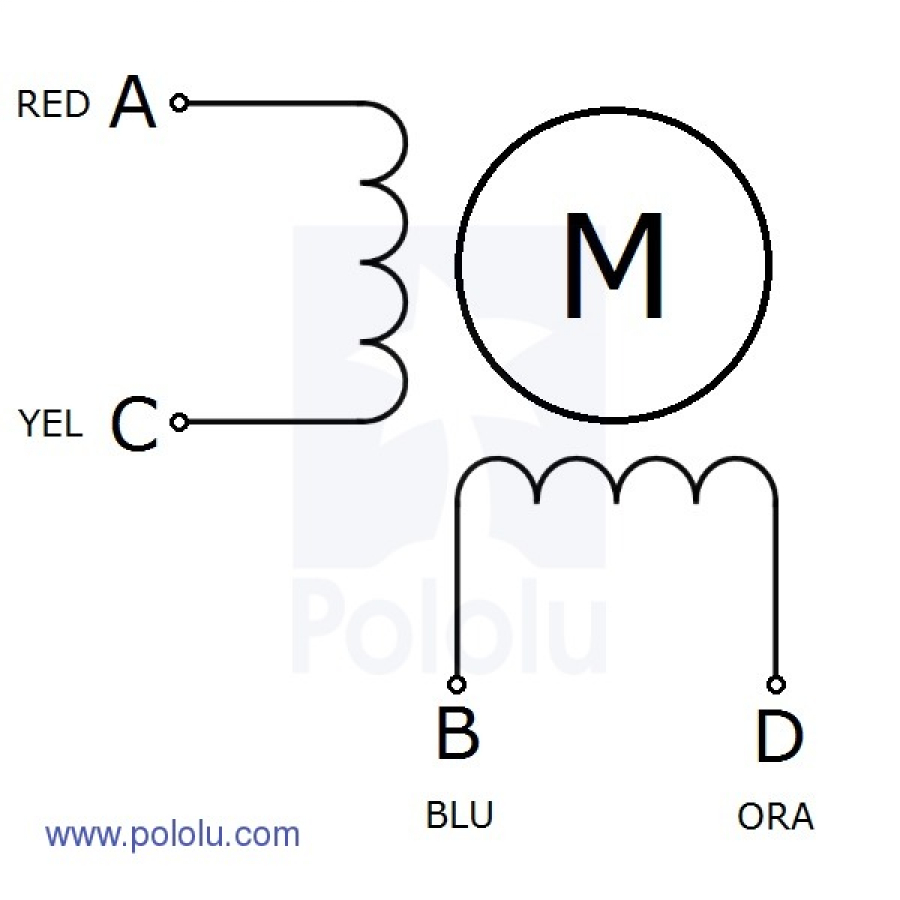

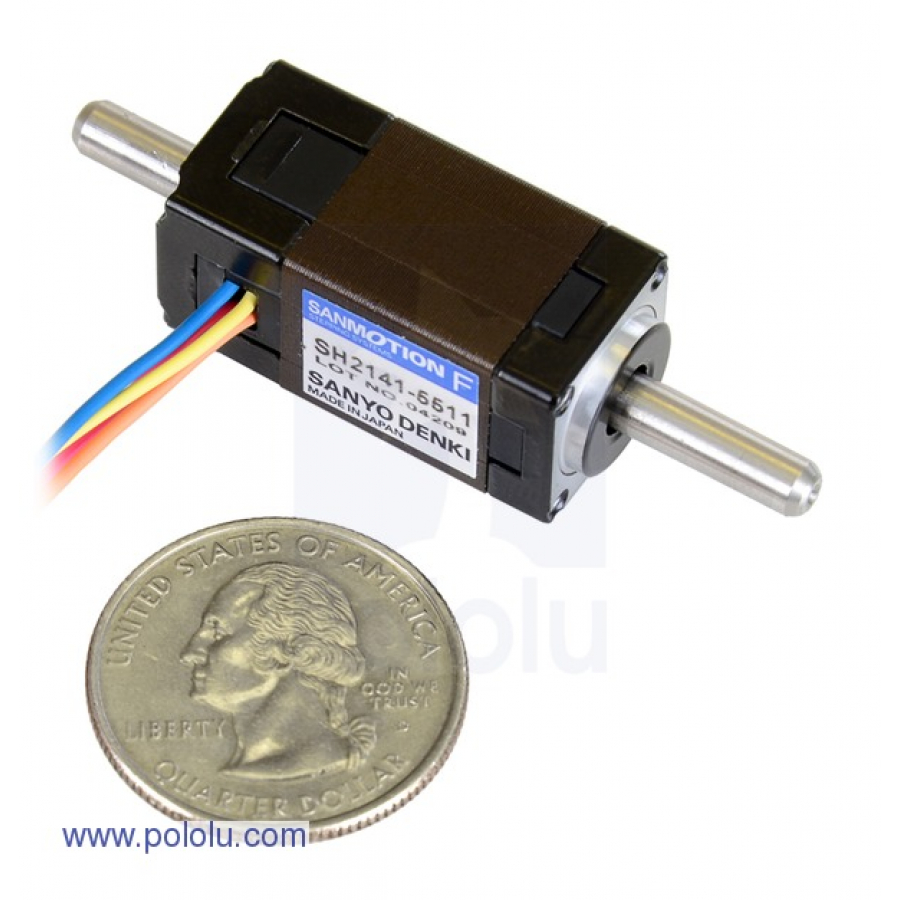

This tiny bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). Each phase draws 300 mA at 6.3 V, allowing for a holding torque of 66 g-cm (0.92 oz-in). The motor has four color-coded wires terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but we recommend using a bipolar stepper motor driver. It is available with a single shaft or double shaft. For more information, see the href="http://www.pololu.com/file/download/SH2141-5541.pdf?file_id=0J613">datasheet (125k pdf).

Our 4mm universal mounting hub can be used to mount objects on the stepper motor˙s 4mm-diameter output shaft.

Specifications

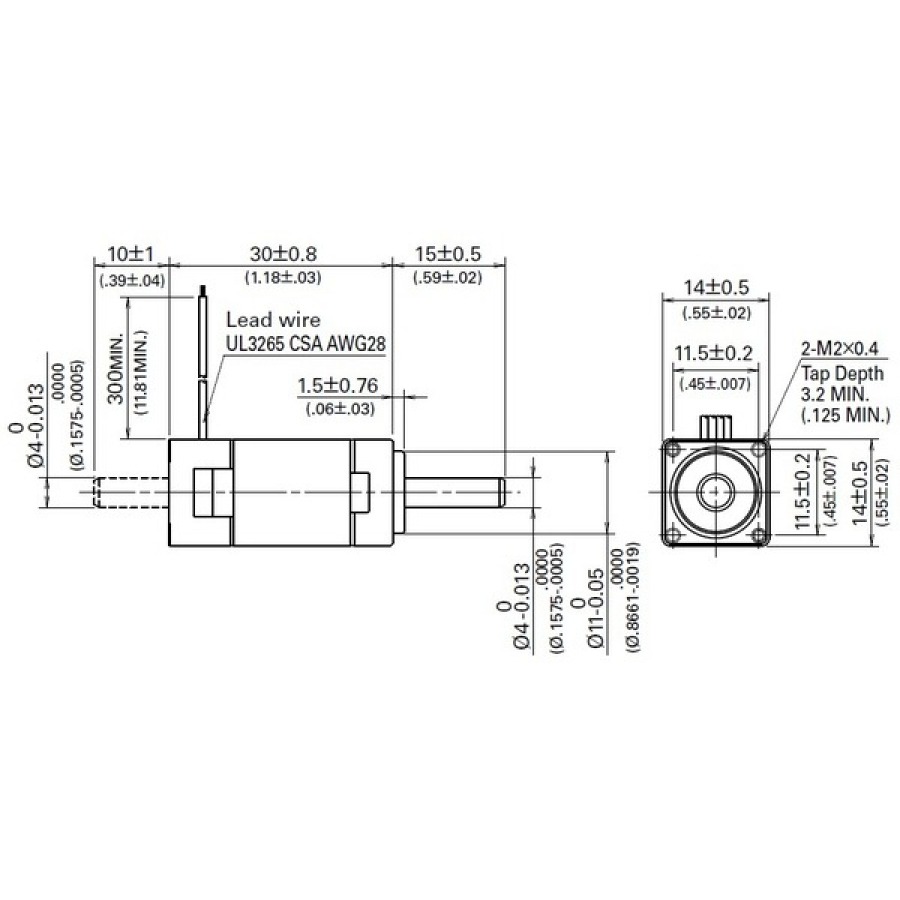

• Size: 14 mm square × 30 mm, not
  including the shaft


• Weight: 27 g (single shaft) or 28 g (double shaft)


• Shaft diameter: 4 mm


• Steps per revolution: 200


• Current rating: 300 mA per coil


• Voltage rating: 6.3 V


• Resistance: 21 Ohm per coil


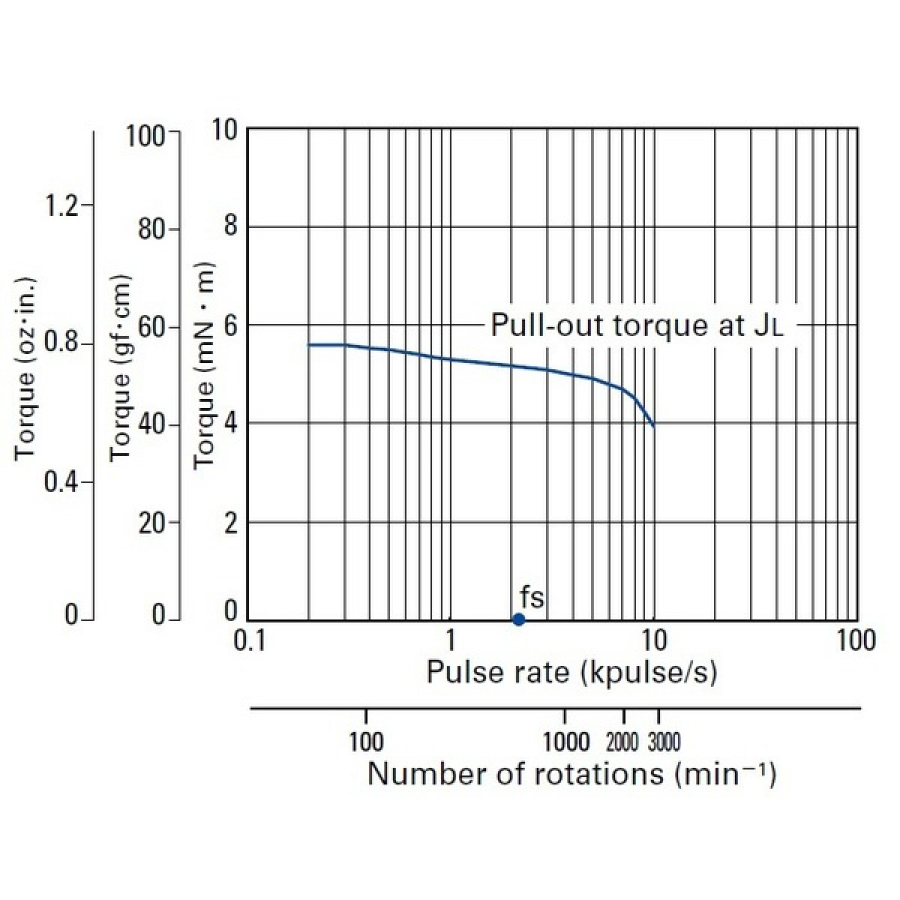

• Holding torque: 66 g-cm (0.92 oz-in)


• Inductance: 4.2 mH per coil


• Lead length: 12 in
